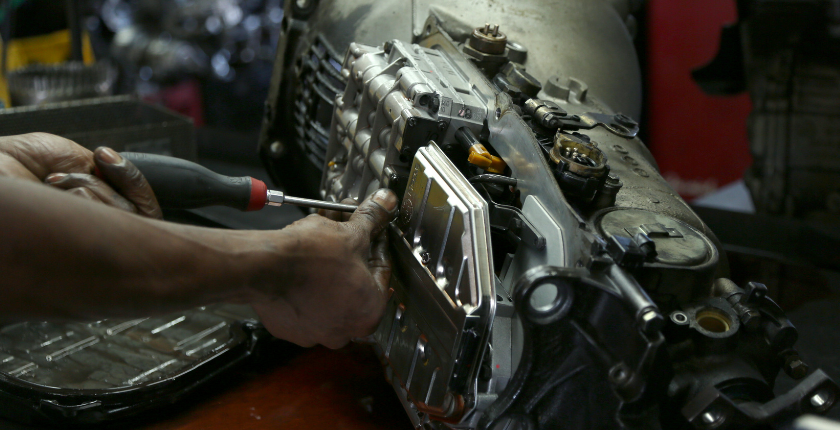

What Is a Valve Body in an Automatic Gearbox?
The valve body is the hydraulic control centre inside many automatic transmissions. It directs gearbox fluid to the correct circuits so clutches and gears apply at the right time.
Why does an automatic gearbox need a valve body?
An automatic transmission uses hydraulic pressure to apply internal clutches and control gear changes.
The valve body contains fluid passages, valves, springs and solenoids that direct that pressure around the transmission.
What are solenoids inside the valve body?
Solenoids are electrically controlled valves. The gearbox control system commands them to alter fluid flow or pressure.
This is one reason modern automatic gearboxes are both hydraulic and electronic systems.
What can go wrong with a valve body?
- Worn regulator valves
- Damaged or slow solenoids
- Internal pressure leakage
- Debris contamination
- Restricted fluid passages
- Electrical faults
- Wear in valve bores or seals
What does a faulty valve body feel like?
Possible symptoms include harsh shifts, delayed Drive or Reverse, slipping, flare between gears, wrong-gear selection, limp mode or warning lights.
Because other gearbox faults can create similar symptoms, testing is important before replacing the valve body.
Can a valve body be repaired rather than replaced?
Yes, depending on the unit. Beds Automatic Transmissions states that valve bodies can be disassembled, cleaned, updated and tested, with solenoids replaced where required.
Read more about valve body remanufacturing and solenoid testing.
Still not sure what your gearbox fault means?
Beds Automatic Transmissions is based in Barton-le-Clay, Bedfordshire and provides specialist gearbox diagnostics, repairs and rebuilds, with collection and delivery available nationwide subject to location and vehicle condition.
Questions people ask about Valve body
What does a gearbox valve body do?
It directs hydraulic fluid pressure to control gear and clutch operation.
What are the signs of a bad valve body?
Harsh shifting, delayed engagement, slipping, wrong-gear selection and warning lights are common possibilities.
Can a faulty valve body cause a gearbox to bang into gear?
Yes. Incorrect pressure control can make a gear or clutch apply too aggressively.
Can a valve body fault cause slipping?
Yes. Pressure loss can prevent clutches applying firmly.
What is a gearbox solenoid?
It is an electrically controlled valve used to regulate transmission fluid flow and pressure.
Can a valve body be reconditioned?
Many can be cleaned, repaired, updated and tested depending on the design and damage.
Does a bad valve body mean the whole gearbox is broken?
No. The valve body is one part of the transmission and may be repairable separately.
